| 加工定制 : | 是 | 品牌 : | HS |
| 型号 : | HS517R | 种类 : | 霍尔 |
| 材料 : | 混合物 | 材料物理性质 : | 磁性材料 |
| 材料晶体结构 : | 单晶 | 制作工艺 : | 集成 |
| 输出信号 : | 数字型 | 漂移 : | 低 |
| 小包装数 : | 1000 | 订货号 : | 21+ |
| 物料编号 : | 21+ | 封装 : | SOT23-3 |
深圳市七悦科技有限公司，主营霍尔元件，电机霍尔，全极霍尔，单极霍尔，双极锁存霍尔，线性霍尔。
深圳七悦科技为你优选海量完整的牙刷消毒器，家用电器专用霍尔开关HS517R，支持在线实时询价。
General Description
The HS517R Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology. It
incorporates advanced chopper-stabilization techniques to provide accurate and stable magnetic switch
points.
The circuit design provides an internally controlled clocking mechanism to cycle power to the Hall
element and analog signal processing circuits.This serves to place the high current-cons uming portions of
the circuit into a “Sleep” mode. Periodically the device is “Awakened” by this internal logic and the
magnetic flux from the Hall element is evaluated against the predefined thresholds. If the flux density is
above or below the B OP/BRP thresholds then the output transistor is driven to change states
accordingly. While in the “Sleep” cycle the output transistor is latched in its previous state. The design
has been optimized for service in applications requiring extended operating lifetime in battery powered
systems.
The output transistor of the HS517R will be latched on (BOP) in the presence of a sufficiently
strong South or North magnetic field facing the marked side of the package. The output will be latched
off (BRP) in the absence of amagnetic field.It incorporates advanced chopper-stabilization techniques to
provide accurate and stable magnetic switch points.
Featrues
v CMOS output
v Micropower consumption for battery powered
applications
v Output switches with absolute value of North
or South pole from magnet
v
Operation down to 1.6V
v
High sensitivity for direct reed switch
replacement applications
v
Ultra Low power consumption at 3uA (Avg)
v
High ESD Protection, HMB > ±8KV( min )
Applications
v
Solid state switch
v
Handheld Wireless Handset Awake Switch
v
Lid close sensor for battery powered devices
v
Magnet proximity sensor for reed switch

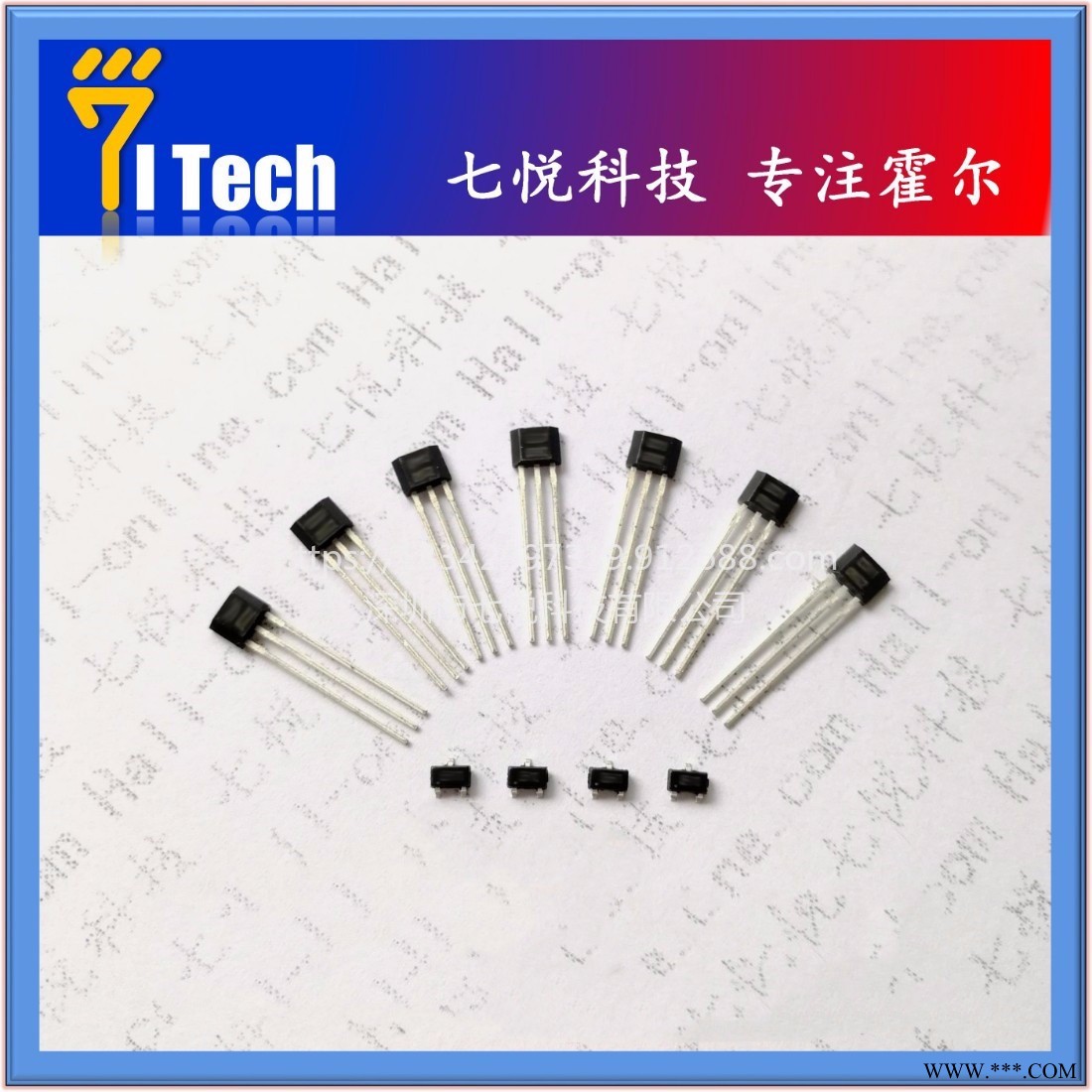

插件封装如下图：
贴片封装如下图：
