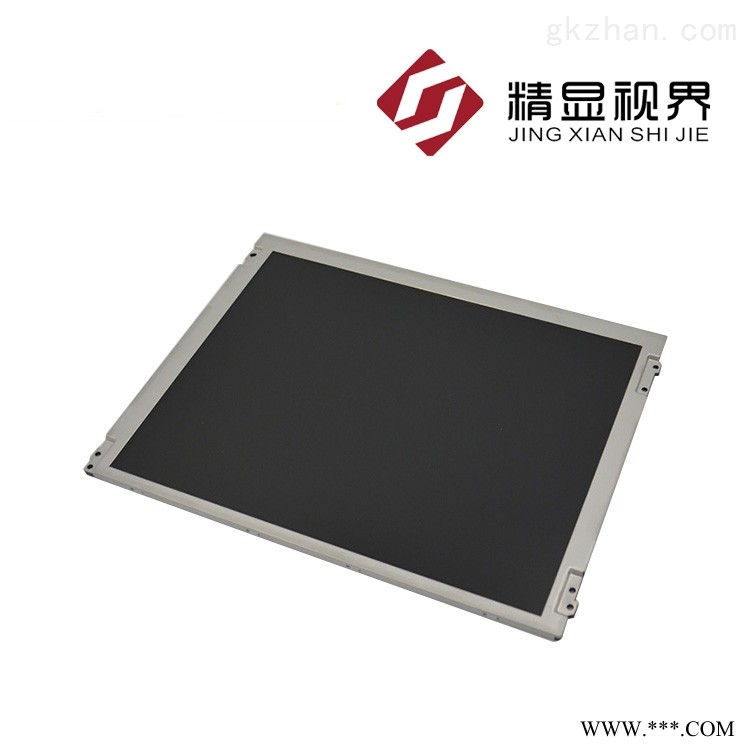

| G121SN01 V403基本参数 | |
|---|---|
| 制造商(Productor) | 友达/AUO |
| 产品型号(MODEL) | G121SN01 V403 |
| 屏尺寸(Size) | 12.1" |
| 分辨率(Resolution) | 800×600 |
| 显示比例(Display scale) | 4:3 |
| 点距(Pixel Pitch) | 0.1025×0.3075 (H×V) |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工业】, |
| G121SN01 V403光电参数 | |
| 亮度(Luminance) | 500 nits |
| 对比度(Contrast Ratio) | 700:1 |
| 颜色(Color) | 262K/16.7M |
| 响应时间(Response) | 25/10 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 80/80/65/75(上/下/左/右) |
| 接口类型(Interface) | LVDS |
| 驱屏电压(Drive-screen voltage) | 3.3V |
| G121SN01 V403结构参数 | |
| 工作温度(Operation Temperature) | -30 °C ~ 85 °C |
| 存储温度(Storage Temperature) | -30°C ~ 85°C |
| 显示区域(Active Area) | 246(H) × 184.5(V) |
| 外形尺寸(Outline) | 279(H) × 209(V) |
| 背光类型(Backlight) | WLED |
| 背光寿命(Life Time of Lamp) | 50k Hours |
