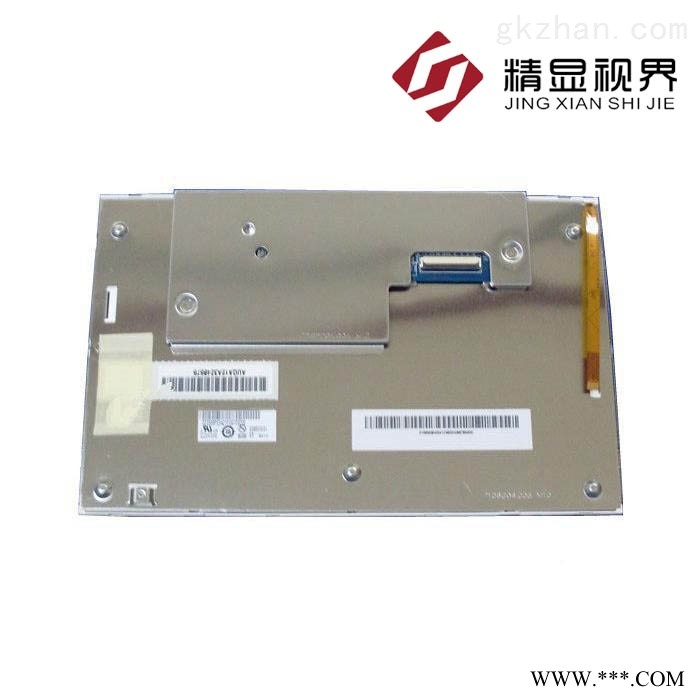

| G085VW01-V3 基本参数 | |
|---|---|
| 制造商(Productor) | 友达/AUO |
| 产品型号(MODEL) | G085VW01-V3 |
| 屏尺寸(Size) | 8.5" |
| 分辨率(Resolution) | 800×480 |
| 分辨率简称(Resolution Name) | WVGA |
| 显示比例(Display scale) | 15:9 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.077×0.231 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工业】, |
| 显著特征(Panel Features) | 【白光LED】, 【翻转显示】, 【雾面】, 【广视角】, |
| G085VW01-V3光电参数 | |
| 显示模式(Display mode) | TN，常白显示，透射式 |
| 亮度(Luminance) | 200 nits |
| 对比度(Contrast Ratio) | 500:1 |
| 颜色(Color) | 262K |
| 色彩饱和度(Color Saturation) | 50%NTSC(CIE1931) |
| 响应时间(Response) | 20/10 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 80/60/80/80(上/下/左/右) |
| 白场色度(White Field Chroma) | X:0.300; Y:0.320 |
| 白场变动(White Field Dynamic) | 1.33 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | 翻转 (180°) |
| 信号类型大类(The kind of Singnal) | Parallel |
| 接口类型(Interface) | CMOS |
| 信号接口定义(Singnal Interface Definition) | BLE-9PINS-AAAANCCCC |
| 驱屏电压(Drive-screen voltage) | 3.3V |
| 面板输入电流(Input Current) | 150mA |
| 信号接口类型(Kind of Singnal Interface) | FPC |
| 信号接口品牌(Brａnd of Singnal Interface) | STARCONN |
| 信号接口型号(Model of Singnal Interface) | 089H40-001100-G2-R |
| 信号接口脚距(Pitch of Singnal Interface) | 0.5 mm |
| 信号接口脚数(Pin of Singnal Interface) | 9 pins |
| G085VW01-V3结构参数 | |
| 工作温度(Operation Temperature) | -20 °C ~ 70 °C |
| 存储温度(Storage Temperature) | -20°C ~ 70°C |
| 表面处理(Surface Technology) | 雾面，Hard coating (3H) |
| 显示区域(Active Area) | 184.8×110.88 mm |
| 可视区域(Display Area) | 189.8×115.88 |
| 外形尺寸(Outline) | 210.00× 134.00×10.00 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源 |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 6S4P pcs |
| 灯管形状(Lamp Shape) | 4串 |
| 背光寿命(Life Time of Lamp) | 30K Hours |
| 单一灯管电压(Voltage of Lamp) | 19.5V |
| 单一灯管电流(Current of Lamp) | 15mA |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | FPC |
| 背光接口品牌(Brａnd of Backlight Interface) | STARCONN |
| 背光接口型号(Model of Backlight Interface) | 089H40-001100-G2-R |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 0.5 mm mm |
| 背光接口定义(Backlight Interface Define ) | BLE-9PINS-AAAANCCCC |
