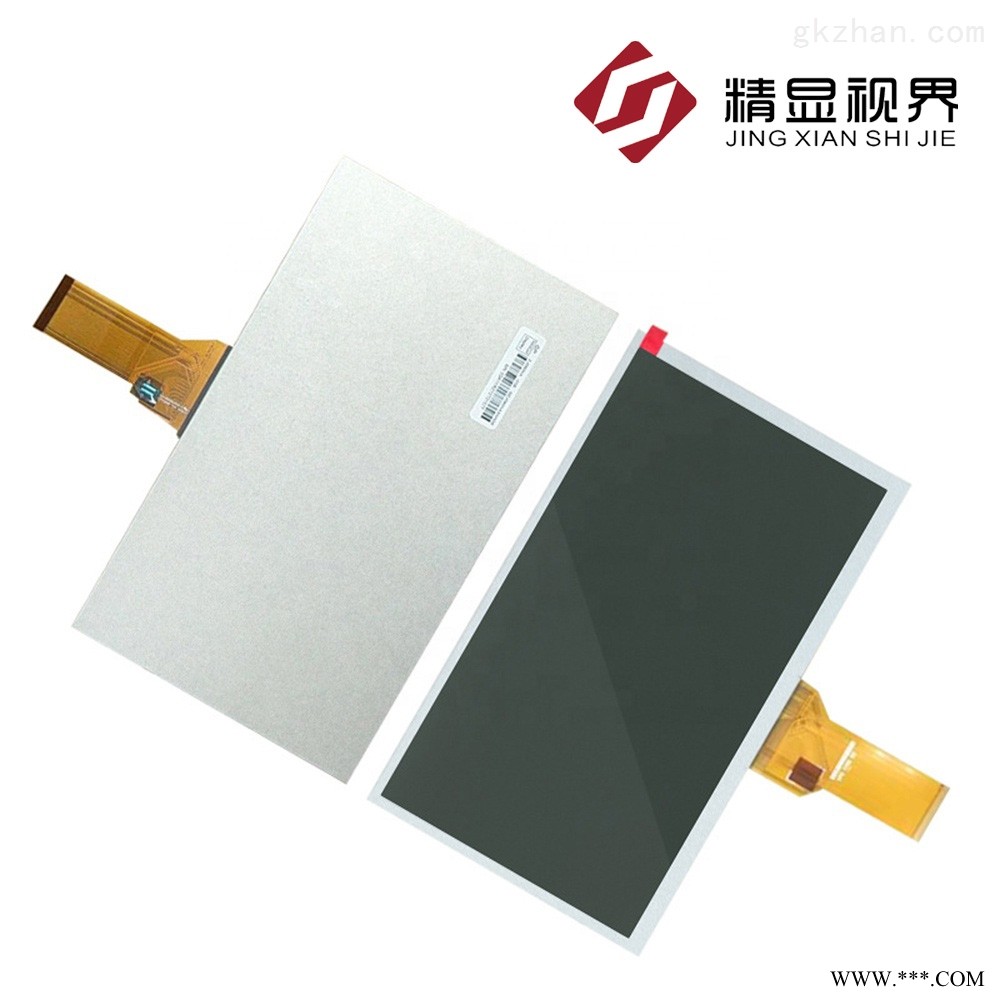

| AT090TN12-V.3 基本参数 | |
|---|---|
| 制造商(Productor) | 群创/Innolux |
| 产品型号(MODEL) | AT090TN12-V.3 |
| 屏尺寸(Size) | 9.0" |
| 分辨率(Resolution) | 800×480 |
| 分辨率简称(Resolution Name) | WVGA |
| 显示比例(Display scale) | 16:9 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.0825×0.2327 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【便携式DVD】, 【数码相框】, |
| 显著特征(Panel Features) | 【灰阶可选】, 【白光LED】, 【翻转显示】, 【雾面】, |
| AT090TN12-V.3光电参数 | |
| 显示模式(Display mode) | TN，常白显示，透射式 |
| 亮度(Luminance) | 250 nits |
| 对比度(Contrast Ratio) | 500:1 |
| 颜色(Color) | 262K/16.2M |
| 色彩饱和度(Color Saturation) | 50%NTSC(CIE1931) |
| 响应时间(Response) | 10/15 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 50/70/70/70(上/下/左/右) |
| 视角(The Best View) | 6 o'clock |
| 白场色度(White Field Chroma) | X:0.310; Y:0.330 |
| 白场变动(White Field Dynamic) | 1.33 (9 points) |
| 反转扫描(Reverse Scan) | 翻转 (水平/垂直) |
| 信号类型大类(The kind of Singnal) | Parallel |
| 接口类型(Interface) | TTL |
| 信号接口定义(Singnal Interface Definition) | DRGB-50P1C8B-115A |
| 驱屏电压(Drive-screen voltage) | 3.3/10.4/17.0/-5.0V (DVDD/AVDD/AVDD/VGL) |
| 面板输入电流(Input Current) | 5.5/32/0.3/-0.3mA (IDVDD/IAVDD/IGH/IGL) |
| 信号接口类型(Kind of Singnal Interface) | 包含在屏信号接口中 |
| 信号接口品牌(Brａnd of Singnal Interface) | FPC |
| 信号接口脚距(Pitch of Singnal Interface) | 0.5 mm |
| 信号接口数量(Quantity of Singnal Interface) | 1 pcs |
| 信号接口脚数(Pin of Singnal Interface) | 50 pins |
| AT090TN12-V.3结构参数 | |
| 工作温度(Operation Temperature) | -20 °C ~ 70 °C |
| 存储温度(Storage Temperature) | -30°C ~ 80°C |
| 表面处理(Surface Technology) | 雾面 |
| 显示区域(Active Area) | 198.0×111.696 mm |
| 可视区域(Display Area) | 201.0×114.7 |
| 外形尺寸(Outline) | 211.10× 126.50×5.90 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源 |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 3S11P pcs |
| 灯管形状(Lamp Shape) | 阵列 |
| 背光寿命(Life Time of Lamp) | 20K Hours |
| 单一灯管电压(Voltage of Lamp) | 9.9V |
| 单一灯管电流(Current of Lamp) | 220mA |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 包含在屏信号接口中 |
| 背光接口品牌(Brａnd of Backlight Interface) | Includedinsignalinterface |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 0.5 mm mm |
| 背光接口定义(Backlight Interface Define ) | DRGB-50P1C8B-115A |
| AT090TN12-V.3包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 30 pcs |
| 包装箱尺寸(Size of the Box) | 530×355×255 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 10.462 Kg |
